Factory Grow Lighting Centro South Customized QB288 16S18P PCB MW 550 V3 480W Samsung LM301H Full Spectrum SK Trash LED Grow Light Veg and Flower

1 Piece
MOQ
Factory Grow Lighting Centro South Customized QB288 16S18P PCB MW 550 V3 480W Samsung LM301H Full Spectrum SK Trash LED Grow Light Veg and Flower
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Lighting solutions service: Lighting and circuitry design
Application: Plant Grow Lighting
PPFDμmol/(m2·s): 150-250
Input Voltage(V): AC 100-240V
Lamp Luminous Flux(lm): 150-220 lumen per watt
Working Temperature(℃): -35 - 85
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: Ip33
Model Number: SN-480W-QB288*4-LM301H
Light Source: LED
Warranty(Year): 1-Year
Main LED Light Source: LM301H
CRI (Ra>): 80
Color Temperature(CCT): Warm White
Power: 480W
Driver: Meanwell LED driver series
Applied for: LED Grow Light
Heatsink Size: L660*W500*H4mm
Voltage: 48V
Zertifizierung: ce, RoHS
Grundinformation
Zertifizierung: ce, RoHS
Model Number: SN-480W-QB288*4-LM301H
Zahlung und Versand AGB
Packaging Details: Standard export package.
Produkt-Beschreibung
Product Description

Centro South Customized QB288 16S18P PCB MW 550 V3 480W Samsung LM301H Full Spectrum SK Bin LED Grow Light Veg and Bloom

1.High efficiency value: each 480W QB288*4 board uses 1152pcs original Samsung LM301H diodes;

2.Effective spectrums: 3000K/3500K/4000K warm white light full spectrum is available to ensure the most useful spectrum for indoor plants growing in all stages;

3.Pre-assembly; easy to operate;

4.Power supply: brand Mean Well driver;

5.Warranty: 1 year for the LED board, 3-5 years warranty for the LED driver;

6.Guaranteed 24 hours on-line after-sale services;

7.Standard with dimmable switch, easy to operate;

Product Effects

Packaging & Shipping

No. Power Model Parts List LED Quantity
1 120W

SN-120W-QB288*1pcs

LM561C/LM301B/LM301H

 1pcs QB288 PCB board (43-48V, 16S18P),
PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink,
(size L326*W210*H22mm, weight 1.2Kg)
1pcs driver, Meanwell 120H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

288 pcs leds

LM561C/LM301B/LM301H
2 120W

SN-120W-QB288*1pcs

LM561C/LM301B/LM301H
& 660nm LEDs

 1pcs QB288 PCB board (43-48V, 16S18P),
PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink,
(size L326*W210*H22mm, weight 1.2Kg)
1pcs driver, Meanwell 120H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

252 pcs leds,

LM561C/LM301B/LM301H
36 pcs 660nm leds.
3 240W

SN-240W-QB288*2pcs

LM561C/LM301B/LM301H

 2pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink,
size L632*W210*H22mm(heatsink weight 2.3Kg)
1pcs driver, Meanwell 240H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

576 pcs leds

LM561C/LM301B/LM301H
4 240W

SN-240W-QB288*2pcs

LM561C/LM301B/LM301H
& 660nm LEDs

 2pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink, size L632*W210*H22mm(heatsink weight 2.3Kg)
1pcs driver, Meanwell 240H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

504 pcs LM301H leds,

LM561C/LM301B/LM301H
72 pcs 660nm leds.
5 320W

SN-320W-QB288*3pcs

LM561C/LM301B/LM301H

 3pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink, size L940*W210*H22mm(heatsink weight 3.5Kg)
1pcs driver, Meanwell 320H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

864 pcs leds

LM561C/LM301B/LM301H
6 320W

SN-320W-QB288*3pcs

LM561C/LM301B/LM301H

& 660nm LEDs

 3pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink, size L940*W210*H22mm(heatsink weight 3.5Kg)
1pcs driver, Meanwell 320H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

756 pcs leds,

LM561C/LM301B/LM301H
108 pcs 660nm leds
7 480W

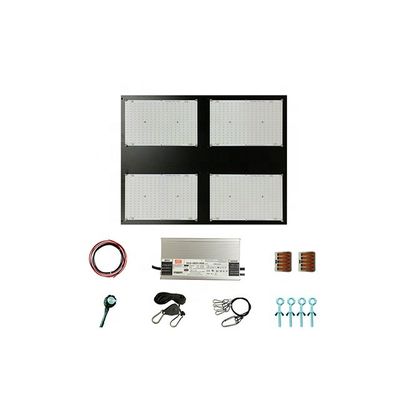

SN-480W-QB288*4pcs

LM561C/LM301B/LM301H

 4pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs flat antioxidant aluminum heatsinks, each size L660*W500*H4mm.
(heatsink weight 3.6Kg)
1pcs driver, Meanwell 480H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1152 pcs leds

LM561C/LM301B/LM301H

8 480W

SN-480W-QB288*4pcs

LM561C/LM301B/LM301H

& 660nm LEDs

 4pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs flat antioxidant aluminum heatsinks, each size L660*W500*H4mm.
(heatsink weight 3.6Kg)
1pcs driver, Meanwell 480H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1008 pcs leds,

LM561C/LM301B/LM301H
144 pcs 660nm leds.
9 600W

SN-600W-QB288*6pcs

LM561C/LM301B/LM301H

 6pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
2pcs finned antioxidant aluminum heatsinks, (each heatsink size L940*W210*H22mm and weight 3.5Kg.)
1pcs driver, Meanwell 600H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2 pcs alumninum bars
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1728 pcs leds
10 600W

SN-600W-QB288*6pcs

LM561C/LM301B/LM301H

& 660nm LEDs

 6pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
2pcs finned antioxidant aluminum heatsinks, (each heatsink size L940*W210*H22mm and weight 3.5Kg.)
1pcs driver, Meanwell 600H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2 pcs alumninum bars
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1512 pcs leds,

LM561C/LM301B/LM301H
216 pcs 660nm leds.
